Standard Dockside Power Pedestal, 100A/50A/50A/20A

Dock Builders Supply Standard Dockside Power Pedestals

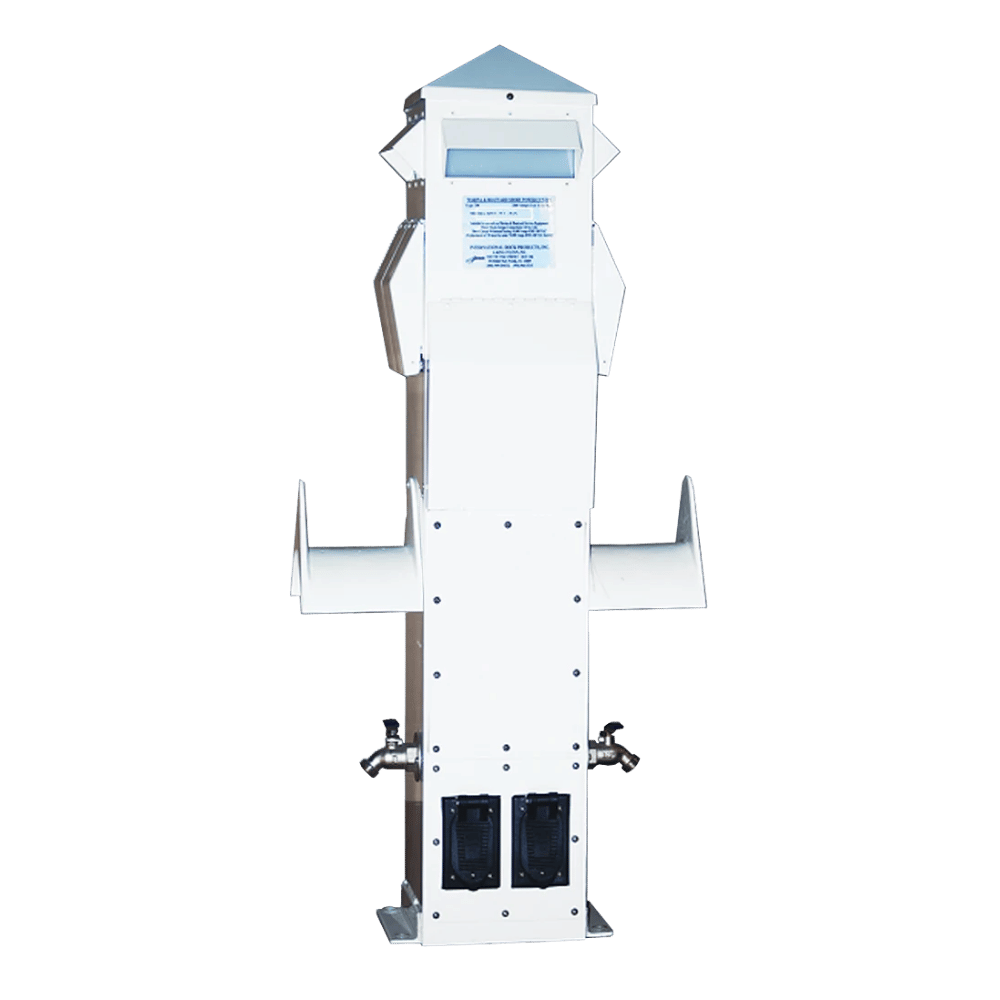

This standard dockside pedestal is 45" tall and features a 8" x 8" casing that is manufactured from a one-piece aluminum extrusion with a wall thickness of 1/8". It includes a welded base, one-piece aluminum cone shaped top, aluminum hinges, and stainless steel fasteners with nylon washers.

All receptacles are mounted at a 45° down angle under stylish aluminum covers. For added protection and beauty, the pedestals are powder coated in white, both inside and out. For custom configurations, including metering, please call us at 1.800.677.4710.

Configured with:

• One (1) LED light and photocell
• One (1) Unmetered
• Two (2) 50A, 125/250V twistlock receptacles - side 1
• One (1) 20A GFI duplex receptacle - side 1
• One (1) 100A, 125/250V receptacle (4-wire, single phase) - side 2
• Two (2) Water connections
• One (1) Cast aluminum hose holder
• One (1) Cable TV/phone connection
• Standard breakers, NOT GFCI breakers

Product Highlights:

• Receptacles are mounted under aluminum covers
• Typically used on medium to large higher-end marinas
• Larger size accommodates numerous configurations (8" x 8" x 45")
• LED light with white opaque Lexan lenses on three sides
• Backlit receptacles for easy receptacle plug-in at night

Special Order Item: This item is made-to-order and is non-returnable. For full details, please see our return policy.
