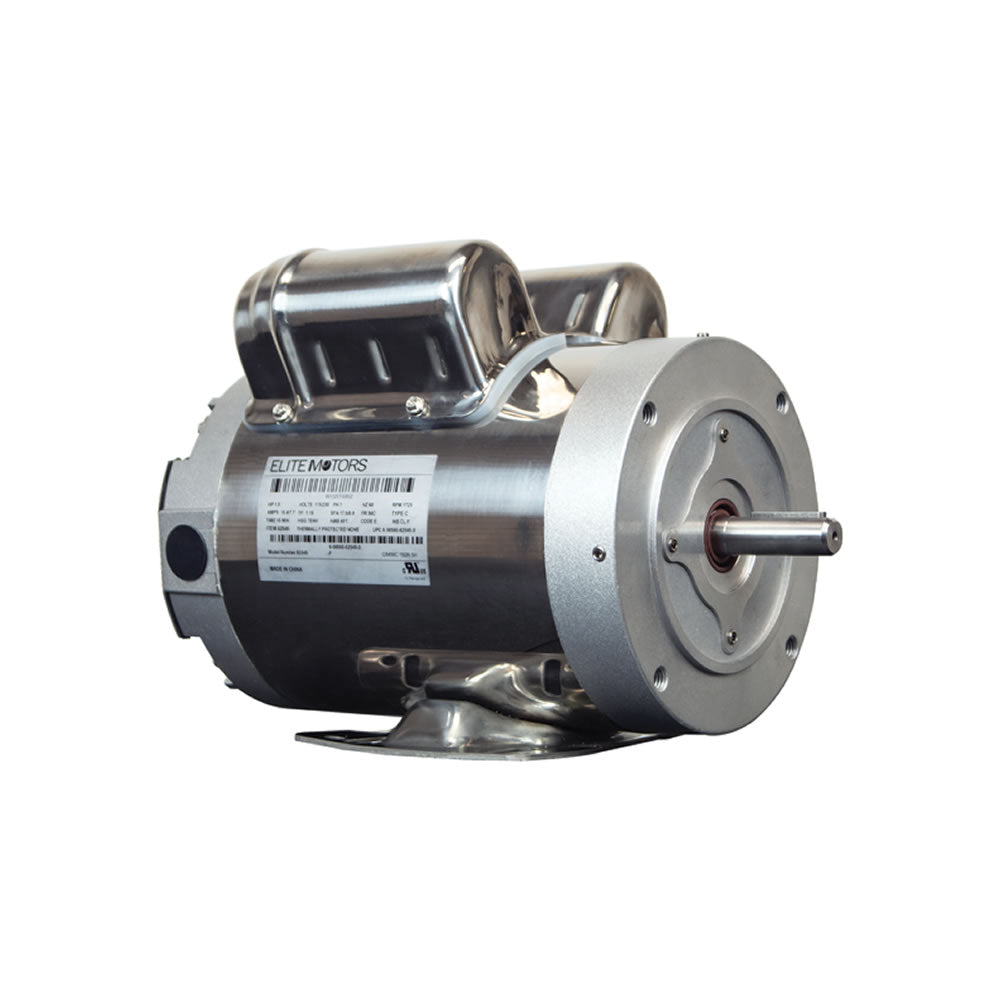

Elite 1.5 HP Stainless Steel TENV Lift Motor, 56 Frame, with Base
SKU: 97229
Elite 1.5 HP Stainless Steel TENV Lift Motor, 56 Frame, with Base, 115v-230v.
- Regular price
- $592.60
- Sale price
- $592.60
- Regular price
-
Name Plate Specifications:
- HP: 1.5
- Voltage: Dual (115v / 230v)
- Phase: 1
- Amps: 15.4 (115v) / 7.7 (230v)
- RPM: 1725
- Hz: 60
- Frame: 56c
- Service Factor: 1.15
- SFA: 17.6 (115v) / 8.8 (230v)
- Type: C
- AMB: 40°c
- Time: 15 MIN
- HSG: TENV
- Code: E
- Insulation: F
- Thermally Protected: None
- UL: Recognized
- UL Stamp: C-UL-US
- IP Rating: IP-54
- Sold as Motor with Base.
Technical Specifications:
- Electrical Type: Capacitor Start
- Rotation: Selective
- Shaft Type: NEMA 56
- Shaft Extension: 1.88 in.
- Frame Length: 10.0 in.
- Mounting: Round
- Drive End Bearing: Ball
- Opp Drive End Bearing: Ball
- Frame Material: Stainless Steel
- Replacement Capacitor: 800 uF
- Keystock: Included
- Keystock Length: 1 5/16 in.
- Keystock Width: 3/16 in.
