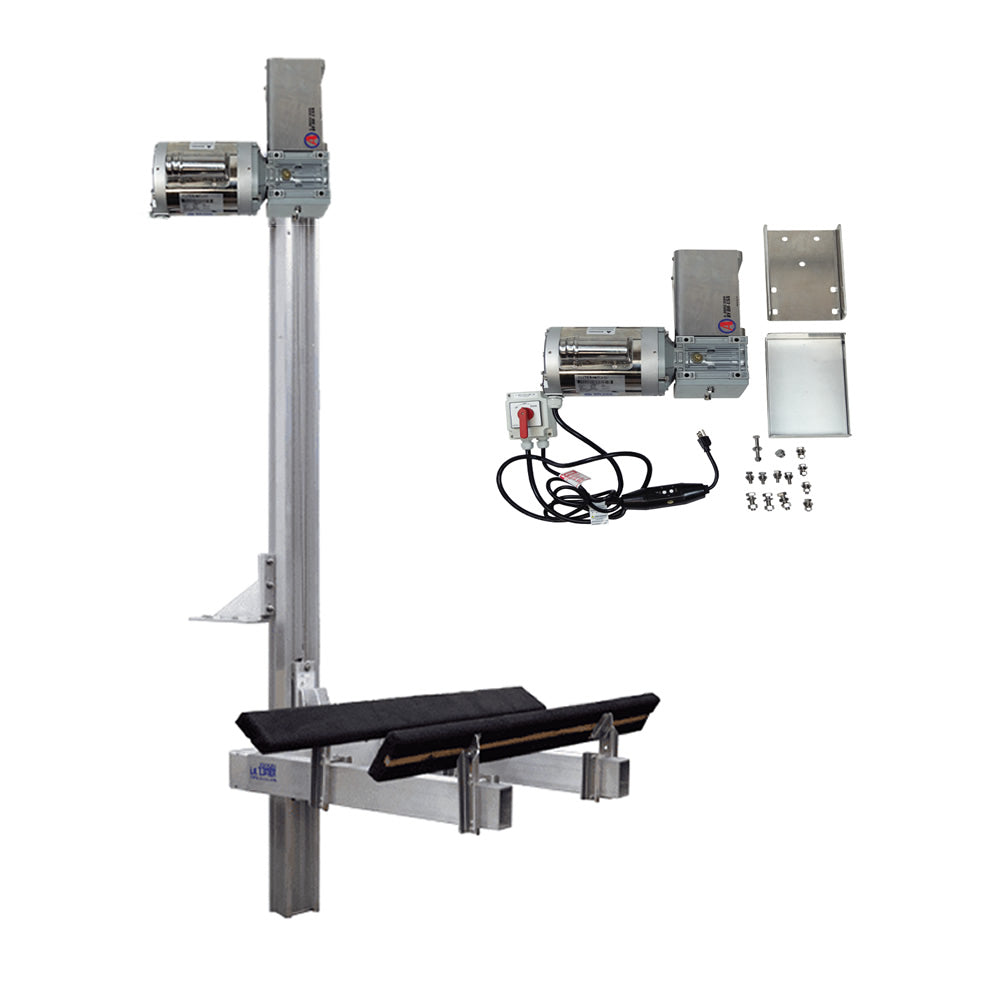

Dockside Lil Lifter, Electric 1200 lb PWC Lift

The Coastal Series Manual Dockside Lil Lifter features an aluminum gearbox and electric motor. It is constructed of 6061-T6 aluminum. This aluminum construction is corrosion-resistant. Ideal for fresh and salt water applications. The Dockside Lil Lifter is sturdy, lightweight, safe, and very easy to operate. It comes with five foot angled carpeted wooden bunks. The gearbox, with aluminum construction, operates at 18 RPM and lifts 1,500 lbs. with a 40% speed increase. Its dimensions are 14 in. x 10.25 in. x 6.875 in. and it weighs 29.27 lbs. The motor operates at 1725 RPM, has a 1 HP capacity, and weighs 28.60 lbs. It’s UL recognized and has a dual voltage. Smooth, clean, trouble-free operation is provided by the rollers. They do not require lubrication. The manual lift can be installed anywhere giving you a lift even in locations without electricity.

Features:

The BHUSA Coastal Series Manual Dockside Lil Lifter has a number of features that make it a great option for boat owners. These features include:

• Sturdy construction: The lift is made from 6061-T6 marine grade aluminum, which is known for its strength and durability. This means that the lift can withstand the elements and is built to last.
• Easy operation: he A-Drive PWC Hoist combines a gearbox and electric motor for efficient lifting. It has a durable construction and fits 1/4 in. 7 x 19 aircraft cable. Operating at a 1:100 ratio, it’s faster than belt-driven hoists and prevents leaks and backspin.
• Smooth operation: The rollers on the lift provide smooth and easy operation. This means that you will not have to worry about your boat getting damaged while it is being lifted.
• Safe and secure: The lift is designed to keep your boat safe and secure. The dock plate is wide enough to prevent your boat from tipping over, and the rollers help to prevent your boat from getting damaged.
• SHIPS LTL FREIGHT (each lift is individually crated).

General Specifications:

• Lifting Capacity: up to 1500 lbs.
• Movement: Electric
• Cable Thickness: 0.75 in. (3/4")
• Cable Material: Stainless Steel
• Cable Type: 7 x 19 Aircraft
• Fasteners: Stainless Steel
• Material/Construction: 6061-T6 US
• PWC Capacity: 1
• Lift Style: Vertical
• Cradle Bunks: Wood
• Cradle Bunk Cover: Black Carpet

Technical Specifications:

• Lifting Height: 7 ft.
• Track Length: 105 in.
• Cable Configuration: Triple
• Carriage Forks: 4 in.
• Carriage Width: 32 in.
• Distance Between Forks: 29.5 in. (center to center)
• Bunk Dimensions: 5 ft. x 6 in.
• Bunk Configuration: Adjustable

*** IMPORTANT NOTICE - 1,200 lb. option must be mounted over dock piling or dock post. Each boat lift is individually crated and shipped via motor freight. It is the purchaser’s responsibility to arrange for a delivery address that is accessible to the freight company and has a fork truck available for unloading. Customers will be required to unload crates by hand if fork trucks are not available (will not fit on lift gate). In order to facilitate the delivery, residential deliveries will require a call from the freight company to the customer. Missed deliveries may incur extra freight charges that will be the buyers’ responsibility.
