SKU: PP-E-L1
Lighthouse Dock Power Pedestal 30A/30A/20A
- Regular price
- $1,381.98
- Sale price
- $1,381.98
- Regular price
-
Item # PP-E-L1 Configured with:
- One (1) Marina Lighthouse
- One (1) Amber Lens Color
- One (1) LED Light
- One (1) Photo Cell-Controlled Light
- One (1) Fuse Lighting Protection
- One (1) Unmetered
- One (1) Single Phase 3/8-16 stud Copper bus bar
- One (1) 30A 125V MARINE TWISTLOCK NEMA L5-30R, 30A 1P BREAKER - Side 1
- One (1) 30A 125V MARINE TWISTLOCK NEMA L5-30R, 30A 1P BREAKER - Side 2
- One (1) Extra Unmetered 20A GFI Duplex Receptacle
- Two (2) Water Connection (NPT 3/4")
- One (1) Service Rating: 250A, 120/240V or 120V
Payment & Security
Your payment information is processed securely. We do not store or have access to your credit card details.
Enter Your Details
Lighthouse Dock Power Pedestal 30A/30A/20A
SKU: PP-E-L1
- Regular price
- $1,381.98
- Sale price
- $1,381.98
- Regular price
-

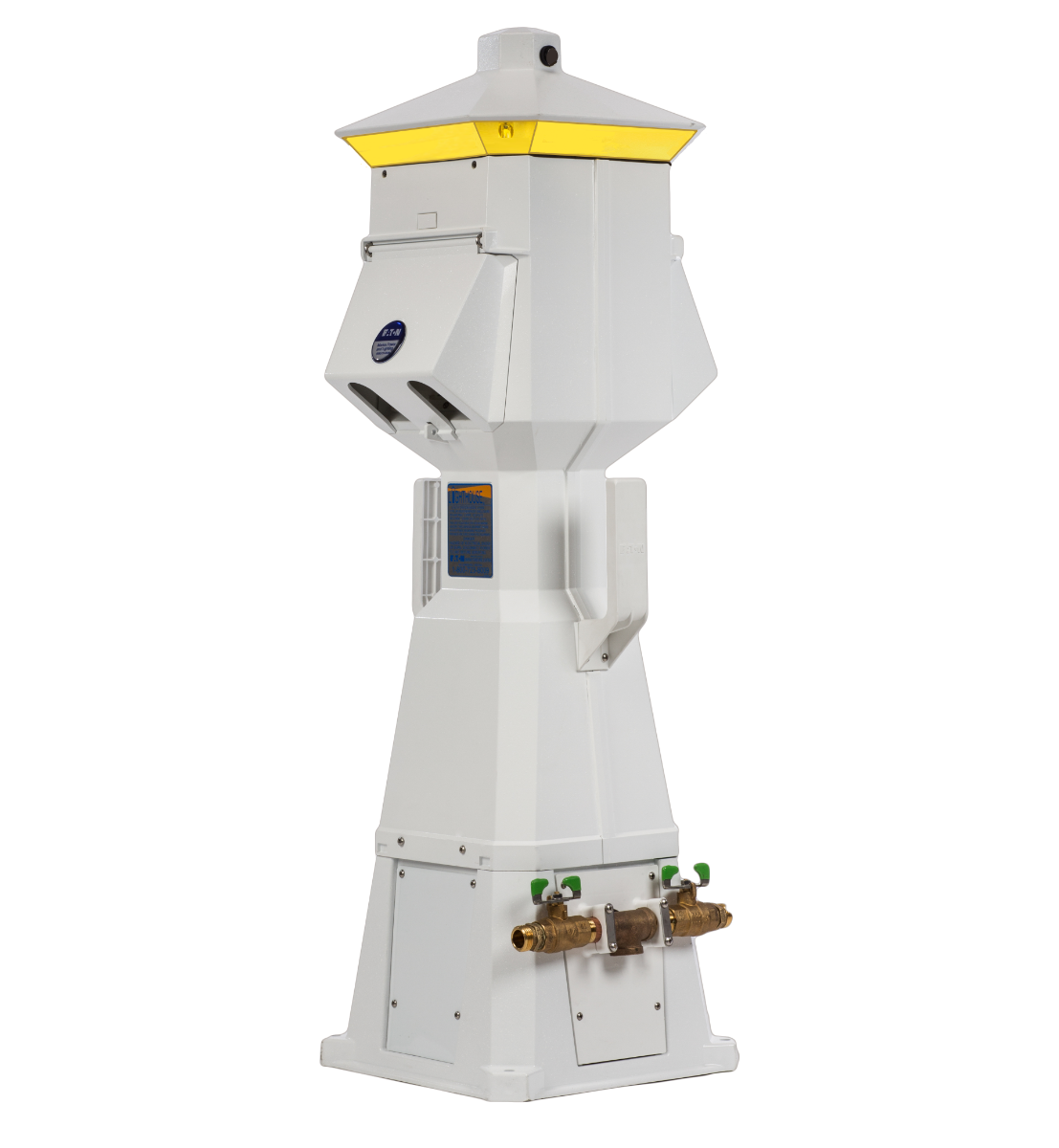

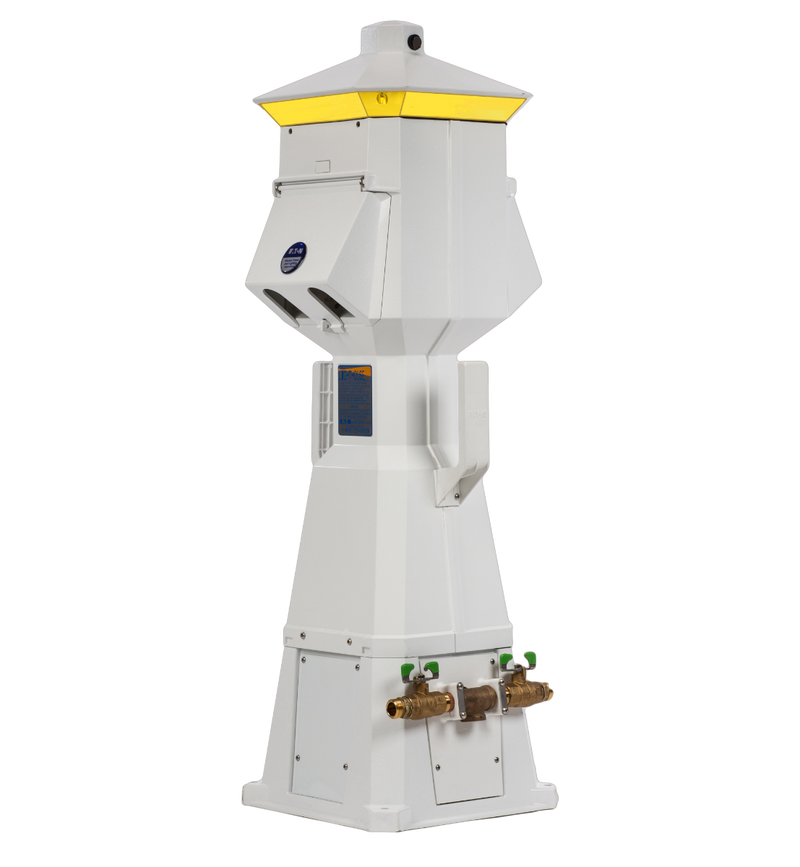

Eaton Lighthouse Power Pedestal
One of our most popular and powerful units, the Lighthouse pedestal has a wide range of features. This stylish power pedestal is recognized throughout the marine industry for its practicality and exceptional durability. Engineered to withstand the most severe weather conditions, lighthouse power pedestals can be found in marinas worldwide. For custom configurations, including metering, please call us at 1.800.677.4710.
Product Highlights:
One of our most popular and powerful units, the Lighthouse pedestal has a wide range of features. This stylish power pedestal is recognized throughout the marine industry for its practicality and exceptional durability. Engineered to withstand the most severe weather conditions, lighthouse power pedestals can be found in marinas worldwide. For custom configurations, including metering, please call us at 1.800.677.4710.
Product Highlights:
- Typically used on average commercial and residential marinas
- Larger size accommodates numerous configurations (44" tall)
- Hingeless base makes installation and maintenance easy
- Backlit faceplate for easy receptacle plug-in at night
- Heavy resin hose/cable brackets come standard
- Lockable weatherproof doors protect breakers and receptacles
- Heavy resin housing with UV resistant coating
| Item #: | PP-E-L1 |
| Light: | LED |
| Photocell: | Yes |
| Lens Color: | Amber |
| Length: | 13.67 |
| Width: | 13.67 |
| Height: | 44" |
| Housing Material: | Heavy resin housing with UV resistant coating |
| Maximum Line Feed: | 350 MCM direct feed or #4/0 loop feed |
| Maximum Amperage: | 250 amps |
| Shipping Weight: | 35 lbs. |
| Manufacturer's Warranty: | 1 year, limited |
