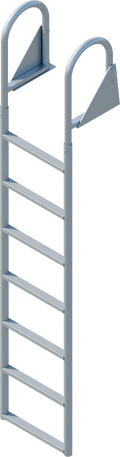

7 Step Swing Ladder with 2" Standard Steps

(picture shown is 3 step model)

• QUANTITY DISCOUNTS available to Marinas and Marine Construction Projects - CALL FOR DETAILS
• 7 Step Flip Up Ladders - flips up or rotates 180 degrees for easy storage.
• Safety pin keeps ladder locked in upright position.
• All A1A dock ladders are constructed from 1-1/2" Round Tubing 6063 T5 Marine Grade Aluminum.
• Tig welding for added strength.
• Ladder rungs are grooved to provide better footing and to reduce slipping.
• Can be used in fresh or salt water applications.
• Mounting requires (4) 1/2" diameter bolts (2 for each handle).
• Length of bolt will vary according to the structure being installed on.
• Check your local hardware store for stainless or galvanized steel bolts.
• Overall Ladder Width: 21"
• Handle Depth: 14"
• Handle Height: 23 1/4"
• Step Depth/Width: 2"
• Distance Between Steps: 12"
• Vertical Drop: 84"
• Weight Capacity: 650 lbs.
• Note: ** Ladders are UPS Shippable - steps are all-welded, but handles are bolted to steps using 2000 lb sheering factor stainless steel aircraft bolts.
