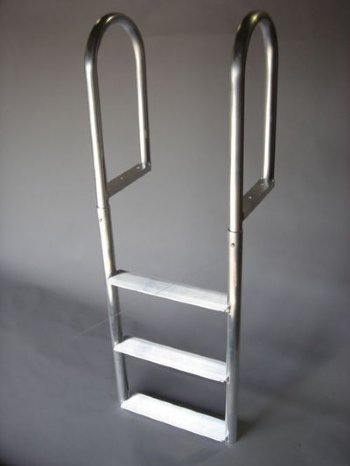

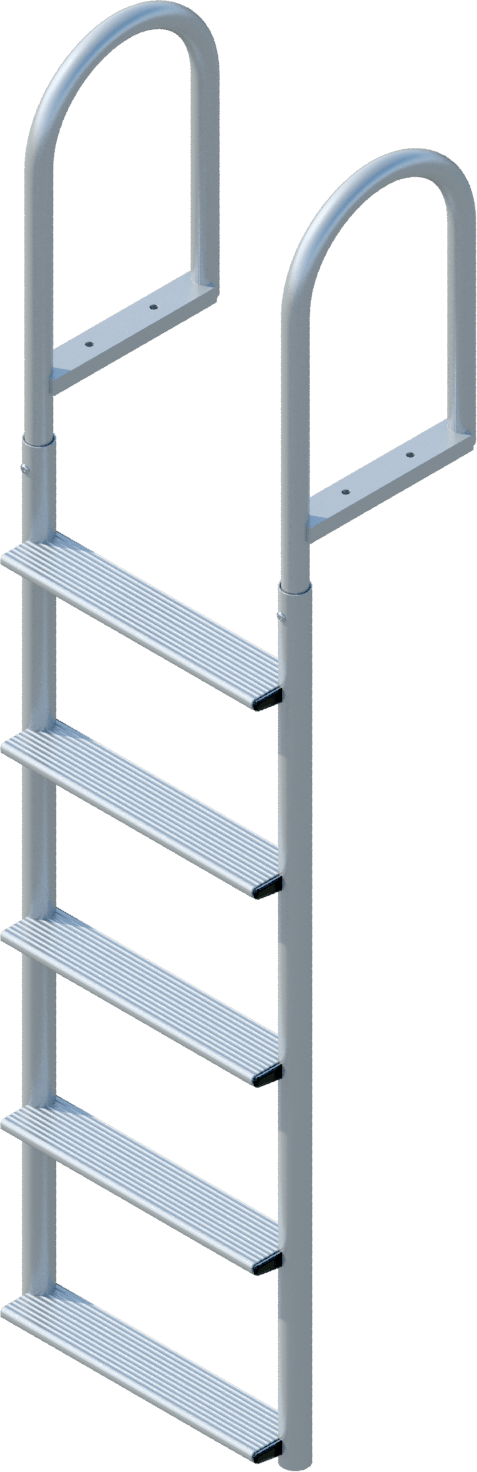

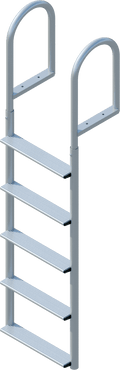

5 Step Straight Ladder with 3-1/2" Wide Steps
A1A 5 Step "Wide Step" Straight Dock Ladders.
- Regular price
- $247.58
- Sale price
- $247.58
- Regular price
-
Typically Ships in 1 to 3 Business Days
- QUANTITY DISCOUNTS available to Marinas and Marine Construction Projects - CALL FOR DETAILS
- 5 Step WIDE STEP Aluminum Straight Dock Ladders
- Wide Step version offers deeper or wider 3.5" steps which makes them more comfortable to climb on than your standard 2" step.
- All A1A dock ladders are constructed using 1-1/2" Diameter Round Tubing 6063T-5 Marine Grade Aluminum.
- Tig welded for added structural strength.
- Ladder rungs are grooved to provide better footing.
- Can be used in fresh or salt water applications.
- Mounting requires (4) 1/2" diameter bolts (2 for each handle).
- Length of bolt will vary according to the structure being installed on.
- Check your local hardware store for stainless or galvanized steel bolts.
- Distance Between Steps: 12"
- Outside Width: 21"
- Handle Height: 23 1/4"
- Step Depth/Width: 3.5"
- Vertical Drop: 60"
- Weight Capacity: 650 lbs.
- Note: ** Ladders are UPS Shippable - steps are all-welded, but handles are bolted to steps using 2000 lb sheering factor stainless steel aircraft bolts.
| Item #: | L-A1-S5Wb |
| Finish: | Mill Finish |
| Tread Depth: | 3-1/2" |
| Ladder Width: | 21" |
| Step Height: | 12" |
| Handle Depth | 14" |
| Handle Height: | 23-1/4" |
| Maximum Reach: | 60" |
| Weight Capacity: | 500 lbs. |
| Shipping Weight: | 28 lbs. |
| Manufacturer's Warranty: | 1 year, limited |
