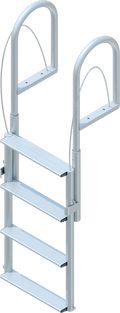

4 Step Lift Ladder with 3-1/2" Wide Steps
A1A 4 Step WIDE STEP Retractable Dock Ladders.
- Regular price
- $280.46
- Sale price
- $280.46
- Regular price
-
Typically Ships in 1 to 3 Business Days
(picture shown is 5 step model)
- QUANTITY DISCOUNTS available to Marinas and Marine Construction Projects - CALL FOR DETAILS
- 4 Step WIDE STEP Retractable Dock Ladders
- All A1A dock ladders are constructed from 1-1/2" Diameter Round Tubing 6063 T5 Marine Grade Aluminum.
- WIDE STEP version has a wider 3.5" rung for more comfort and support when climbing on the ladder (versus standard 2" wide rung).
- Tig welding for added structural strength.
- Extruded grooves provides sure footing.
- Can be used in fresh or salt water applications.
- Standard version has a 25" base, each rung is 12" apart with 2" wide steps.
- 3 step ladder yields 3 feet fully extended (from the top of your dock to the bottom of the ladder).
- Mounting requires (4) 1/2" diameter bolts (2 for each handle).
- Length of bolt will vary according to the structure being installed on.
- Check your local hardware store for stainless or galvanized steel bolts.
- Overall Ladder Width: 21"
- Handle Depth: 14"
- Handle Height: 23 1/4"
- Step Depth/Width: 3.5"
- Distance Between Steps: 12"
- Vertical Drop: 48"
- Weight Capacity: 650 lbs.
- Note: ** Ladders are UPS Shippable - steps are all-welded, but handles are bolted to steps using 2000 lb sheering factor stainless steel aircraft bolts.
| Item #: | L-A1-L4Wb |
| Finish: | Mill Finish |
| Tread Depth: | 3-1/2" |
| Ladder Width: | 21" |
| Step Height: | 12" |
| Handle Depth | 14" |
| Handle Height: | 23-1/4" |
| Maximum Reach: | 48" |
| Weight Capacity: | 500 lbs. |
| Shipping Weight: | 26 lbs. |
| Manufacturer's Warranty: | 1 year, limited |
